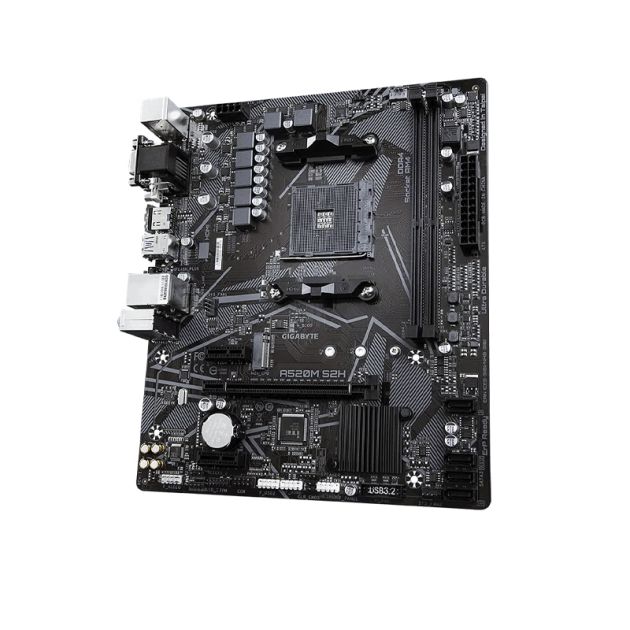

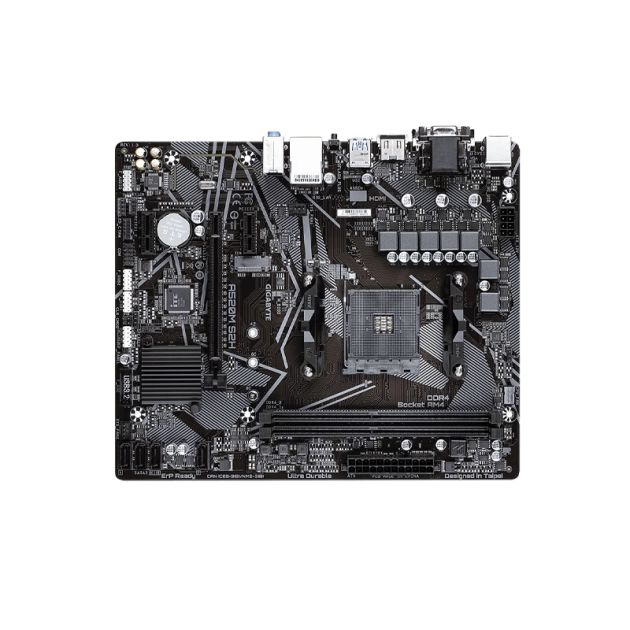

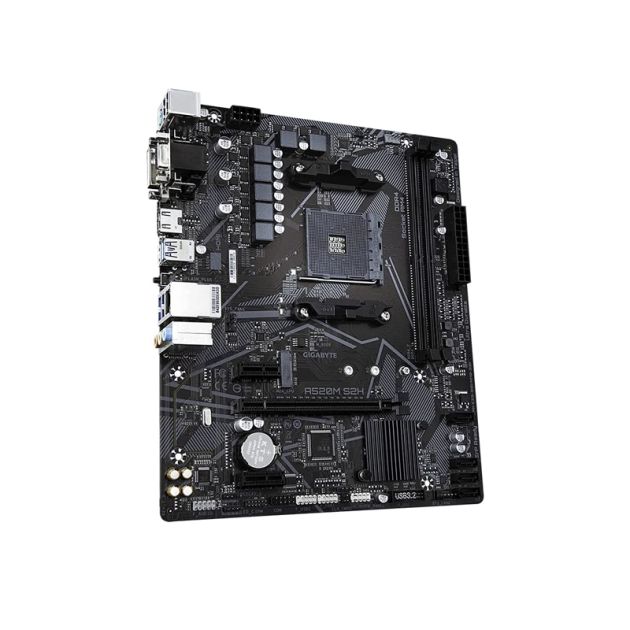

Motherboard mATX Gigabyte A520M S2H Socket AM4 Chipset AMD A520

Exploit the full power of the A520M S2H motherboard, for your different configurations. Its design incorporates the AMD A520 chipset and an AM4 socket, making it possible to fully exploit the performance of the new processors. This inexpensive motherboard in microATX format offers you advanced features to boost the performance of your PC reinforced PCI-Express 16x port, 2 NVMe compatible M.2 ports. This is without counting on its RGB LED lighting and its Mystic Light Sync functionality allow you to effectively illuminate the interior of your case, to highlight your components.

An AMD A520 processor

The presence of the new AMD A520 chipset allows maximum exploitation of the performance of your motherboard and all of its capabilities . With an AM4 socket that guarantees optimal compatibility with all new next-generation processors and APUs.

The AMD Platform Step up a gear with native DDR4 memory support for higher performance in games and application tasks.

Product specifics:

Product: Motherboard
Brand: Gigabyte A520M S2H
Model: A520M S2H
Chipset: AMD A520
Socket: AM4 Ryzen 3xxx processors (Matisse / Picasso / Ryzen 5000G)
Ram slot: 2 x DDR4 5000
Expansion Ports:
- 1 x PCIe 3.0 x16 (max x16 mode) (PCIEX16)
- 2 x PCIe 3.0 x1

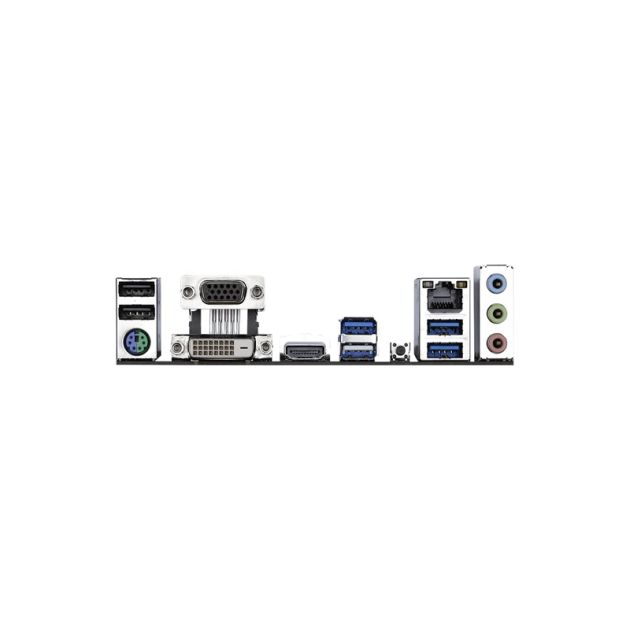

Integrated graphics ports
- DVI-D (max. 1920 x 1200 @ 60Hz)
- HDMI 2.1 (max. 4096 x 2160 @ 60Hz)
- VGA (max. 1920 x 1200 @ 60Hz)
Storage
- 1 x M.2 Socket 3, with M Key,
- 4 x SATA 6Gb/s
- Support RAID 0.1, 10
USB
- 5 x USB 3.0 (4 rear, 1 internal)
- 4 x USB 2.0 (2 rear, 2 internal)
Bios: 128Mb UEFI AMI BIOS
Dimensions: mATX 24.4 x 20.5 cm
Warranty: 6 months
